Build A Drone Projects (The free build in USA
only)
The annual build a drone project is a way to raise awareness and recruit
volunteers. We build drones for you based on the list of parts you
select. Since you will be purchasing 90% of the parts directly yourself, all we do
is build it and test flight. The other 10% cost will be reserved to cover solder, sandpaper,
tape, velcro, locktite, servo leads, jumper cables, BEC, JST cable, masking
tape, anti-vibration pads and custom battery
adapter and lots of zip-ties. All we ask is that you train, volunteer, recruit when
the need arises. You will be initiated into our unique squadron of
volunteers.
To qualify, complete the volunteer form. You
must only be interested in video, photography and UAV. We just build
according to your specs.
|
 |
|
DM-SAR X450 (nicknamed DM Apache) with Frsky Taranis radio transmitter
Synopsis:
To build a fully loaded drone with GPS,
Autopilot and Waypoints, so another
Build A Drone project in action.
!
Equipment Selection Specification:
Aircraft: DM-SAR X450, DM Apache

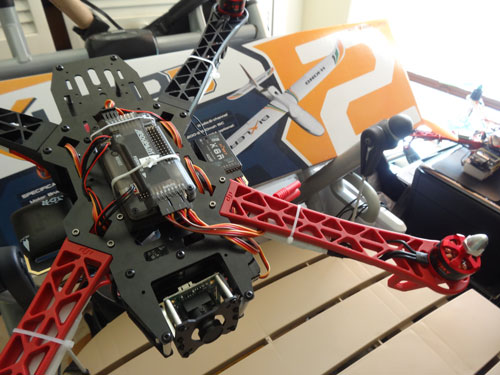

DM-SAR X450 is the latest model from our Search And Rescue quad series.
This model carries a keychain camera build into the frame that you can
remotely pitch from over 2 miles away, transmitting live video to the pilot.
Equipped with GPS, Barometric Sensor, external Compass with an On Screen Data
capture board. Nicknamed "The Apache" because its sidewinder bays - on the
left the radio receiver/OSD and on the right the compass/GPS. The power
distribution is hidden in an enclosure in the lowest deck. The legs uses
the standard DJI design, which makes it easily replaceable, cost efficient and
very strong. The design passes the compassmot test way below the suggested
minimum possible interference.
Aircraft Design Specification:
|
Apache Drone |
Est. Cost |
Alternate |
Description |
Where to Buy |
|
Flight Controller |
US$159.99 |
$89.99 |
3DR APM 2.6 onboard computer or Arduflyer |
3DR or RcTimer |
|
GPS & Compass |
US$79.99 |
$39.99 |
3DR uBlox GPS with external compass or u-Blox CN06 Plus |
3DR or RcTimer |
|
Receiver |
US$43.99 |
US$30.00 |
FrSky X8R 2.4G 16CH SBUS Smart Port Telemetry Receiver |
BUY HERE |
|
Frame Design Mod |
US$91.97 |
US$0 |
DM-SAR 450 mm, carbon and fiberglass |
|
|
Motors & ESCs |
US$178.69 |
US$178.69 |
DJI 450 kit and basic frame (GLB) |
|
|
Micro UBEC 3A / 5v |
US$3.84 |
US$3.84 |
UBEC for power supply, as Opto ESC has no Battery Eliminator Circuit |
BUY HERE |
|
On Screen Display |
US$18.03 |
US$18.03 |
MininOSDVirtual flight instrument panel with real-time
data |
BUY HERE |
|
Video Transmitter |
US $98.00 |
US $98.00 |
5.8G 400mW Video Audio A/V Transmitter Module |
BUY HERE |
|
Video Receiver |
US$19.99 |
US$19.99 |
Video Audio A/V Receiver Module |
BUY HERE |
|
Zip Ties |
US$9.16 |
US$9.16 |
3*150mm Nylon 1000 self-locking zip ties |
|
|
Telemetry |
To buy |
|
Telemetry Ground Module 915Mhz, real-time mission
planning |
Try RCTimer.com |
|
Monitors or goggle |
TBD |
|
Drone ground station |
|
|
Second Camera |
TBD |
|
High definition GoPro 3 or Boscam Cobra HD |
BUY HERE |
|
Blackbox |
TBD |
|
DVR to record flight data. The Taranis also
records flight data |
|
|
Laptop |
TBD |
|
Personal computer for mission planner |
|
|
Main battery |
US$23.37 |
US$23.37 |
10 minutes flight time. 3 cells, 4000 mAh, 25c |
BUY HERE (click wait 5 mins for $3 off) |
|
|
|
|
|
|
|
Capabilities |
|
|
|
|
|
Auto waypoints |
|
|
allows you to map flight paths on computer for autopilot |
|
|
Return to Launch |
|
|
auto return to home using GPS, bail out! one
switch |
|
|
Circle |
|
|
circle around by radius |
|
|
Altitude Hold |
|
|
stay on fixed altitude |
|
|
Position Hold |
|
|
stay on fixed position for vertical landing |
|
|
Loiter |
|
|
combination of position and altitude hold, hovering |
|
|
Failsafe |
|
|
auto return home when radio signal loss or
battery low |
|
|
Land |
|
|
auto land |
|
|
Simple |
|
|
fly by compass |
|
|
Simple GeoFence |
|
|
user-defined box that if breached forces the
copter to return |
|
|
Follow Me |
|
|
copter follow you as you walk around, like a
"personal droid" |
|
|
Camera stabilizer |
|
|
build in gimbals, managed by flight controller |
|
|
Flight Distance |
|
|
stock range 3-5 miles |
|
|
Ultrasonic Sensor |
|
|
determine distance to an object - just like bats or dolphins do. |
|
|
|
|
|
|
|
|
Applications |
|
|
|
|
|
Brushfire assessment |
|
|
Thermal camera |
|
|
|
|
|
|
|
|
Radio System |
|
|
One time investment |
|
|
Transmitter |
US$213.99 |
US$130 |
FrSky 2.4GHz ACCST Taranis X9D Transmitter.
Verbally speaks the distance, voltage, airspeed, altitude etc. Our
alternate is to get a Turnigy 9X or Devo 10 |
BUY TARANIS
BUY TURNIGY 9X |
|
